Name: Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Brand: Yanming
Price: 1 USD

Brand Name : Yanming

Model Number : XD-6106

Certification : ISO,CE,EGS

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T,L/C

Supply Ability : 200 set/month

Delivery Time : 5-20 work days as per order volume

Packaging Details : pallet packing for export

Model NO. : XD-6106

Power : Electric lithium battery

Overall dimension : 400*300*1250 mm

Lift Motor : Hydraulic

Drive Motor : 800W

HS Code : 8431209000

Warranty : one year

Type : electric Pallet Truck

Material : Steel

Load Capacity : 2T

Entry Type : 2-Way

Customization : Available | Customized Request

Price : Negotiable

Contact Now

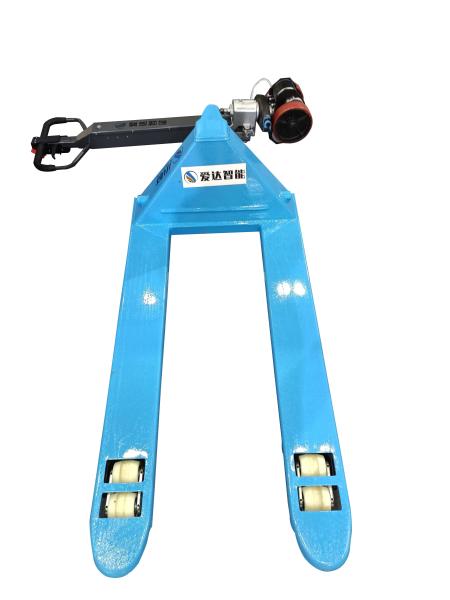

Tons Semi-electric Pallet Truck li-on pallet jack

The compact semi-electric pallet truck, the pallet truck with lithium battery power driving and hydrauic lifting and lowering

Advantages

Compact design, small size and light weight.
It occupies a small area and can be carried by logistics drivers in their vehicles.
Lithium battery, large capacity, fast charging
Multifunctional handle with turtle speed function
Strong frame, fork thickness 4mm
Installed with integrated power handle kit, can be disassemble for replacement and maintenance easily

Technical Parameters

Feature
Brand	AIDA	Unit
Model	XD-6105
Power	Electric
Operation way	Walkie
Load capacity	2000	kg
load centre distance	600	mm
Size and Weight
Self weight	90	kg
Overall size	15505501270	mm
Wheel
Wheel type(frnt/rear)	PU
Driving wheel	φ190×70	mm
Bearing wheel	φ80×70	mm
Dimension
Min.ground clearance	85	mm
Max.ground clearance	200	mm
Fork length	685	mm
Fork width	1150	mm
Overall height	1200	mm
Min.turning radius	1250	mm
Performance
Driving speed laden/unladen	4.8/5.2	km/h
Gradeability loaded/unladen	3/7	%
Electrical configuration
Driving motor	0.8	KW
Battery	Li 48V/15Ah	V/Ah

Product Structure Details

Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
